VT60

Guillotine-type transfer shutter E60 or EI60 (with a grill)

Guillotine-type transfer shutter tested according to European standard EN 1634-1 and classified E60 or EI60 (if finished with a grill). The VT60 is surface-mounted on light and massive walls of 100 mm or built-in with the E-VT60 option.

Available dimensions (Hn/Wn): 300×200 mm > 800×800 mm

Benefits:
  • Fast installation
  • Optimal free air passage and minimal pressure loss
  • Compact build-in depth
  • Lightweight
  • Optional in-wall installation kit

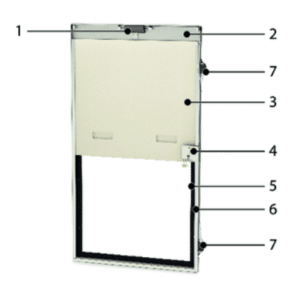

Components:
  1. Connection compartment
  2. Steel frame
  3. Damper blade
  4. Fusible link
  5. Intumescent strip
  6. Slides

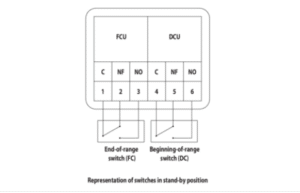

  7. End and beginning of range switches (option)
Features:
  • Dry mounting (surface-mount)
  • Suitable for surface-mounting without a mounting frame on light and rigid wall
  • Tested in accordance with EN 1634-1
  • Unlocking by fusible link
  • Maintenance-free
  • For indoor use
Mechanisms:

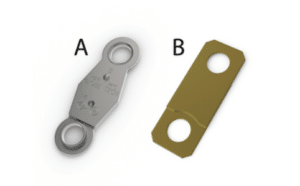

The fusible link holds the blade of the damper in open position.

VARIANTS

  • FUS72 – VT60
    Fusible
